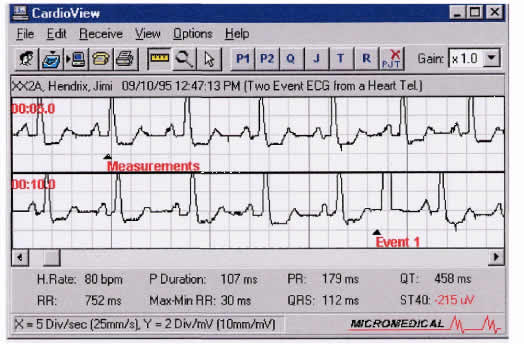

Reviewing a single-lead ECG rhythm strip

This is the view for direct thorax and single lead records sets.

You can modify the lenght of the ECG shown in the main window: change between 10 sec, 30 sec, 60 sec , 2 Min., 6 Min. oder 30 minute scales. You can also change the vertical scale: x 0.5, x l .0 or x 2.0. You can view a 12-lead ECG as an individual strip.

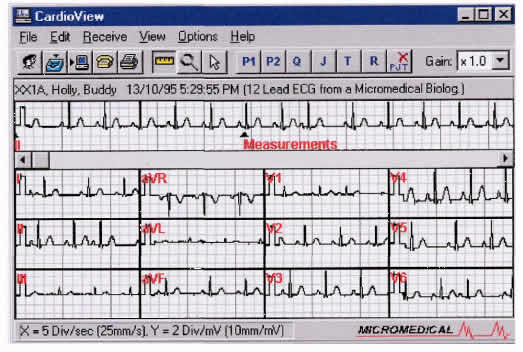

Reviewing a 12-lead recording

The 12-lead view shows all 12 leads in a 3x4 layout where the rhythm strip is located topmost on the display. When the rhythm strip is longer than the recoed width to be displayed use the scroll bar to see more data.
