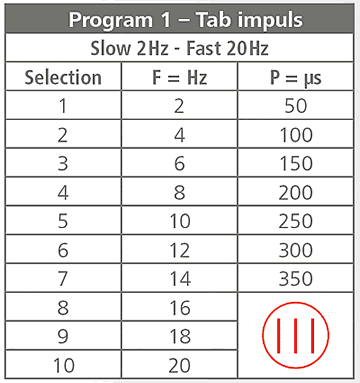

PT 3010 Programs 1-2-3

These programs are individual frequencies and intensities which can be selected using the function button.

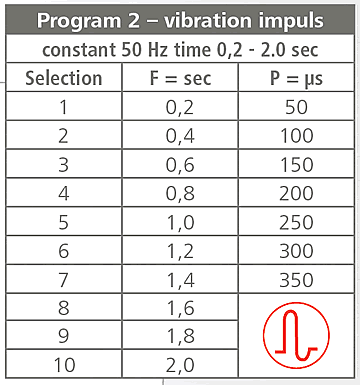

Programs (2)

Vibration Impulse Programs

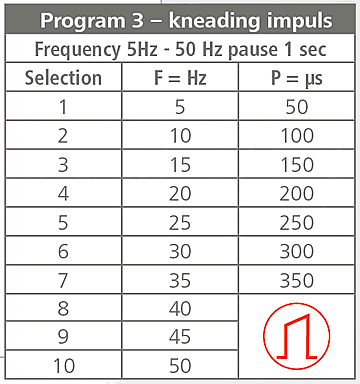

Programs (3)

function button for Master
on PT 3000-p model only

function_p

PROGRAM 4 – 8 ARE STANDARD PROGRAMS

Combination programs 4 – 7 … for muscle
Program 4 …Shoulder
Program 5 …Back
Program 6 …Gluteal and quadriceps
Program 7 …Biceps / triceps / other mid to small muscles
Combination program 8 …for joints

Standard Programs can adjust intensity only.

controls

Control Group

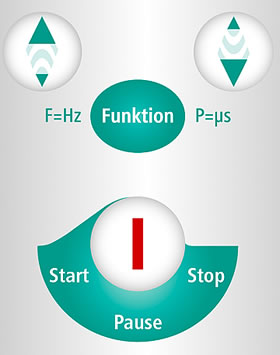

This picture shows the controls of the unit PT 3000-p.

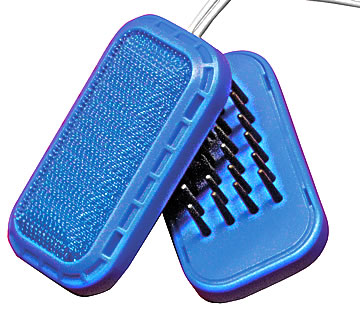

E-Pads

E-PAD
Use only with PT-3000 series
Only for ANIMAL
E-Pads 24: small pads
E-Pads 48: large pads
